Get a head start on your analysis with Quick-Gen
- With one click answer the most common questions using predefined analysis tools and templates
Figure 1. Customized maps showing a) EBSD image quality and IPF orientations, b) PRIAS and grain color maps with twin boundaries, and c) grain size maps after twin removal from a high entropy alloy brazing.
- Turn your custom analyses into one-click Quick-Gen templates for repeated use and to shorten your time to an answer
- Reproducibly process large, multidimensional datasets or projects with batch processing templates to monitor microstructural changes across samples, time, or temperature

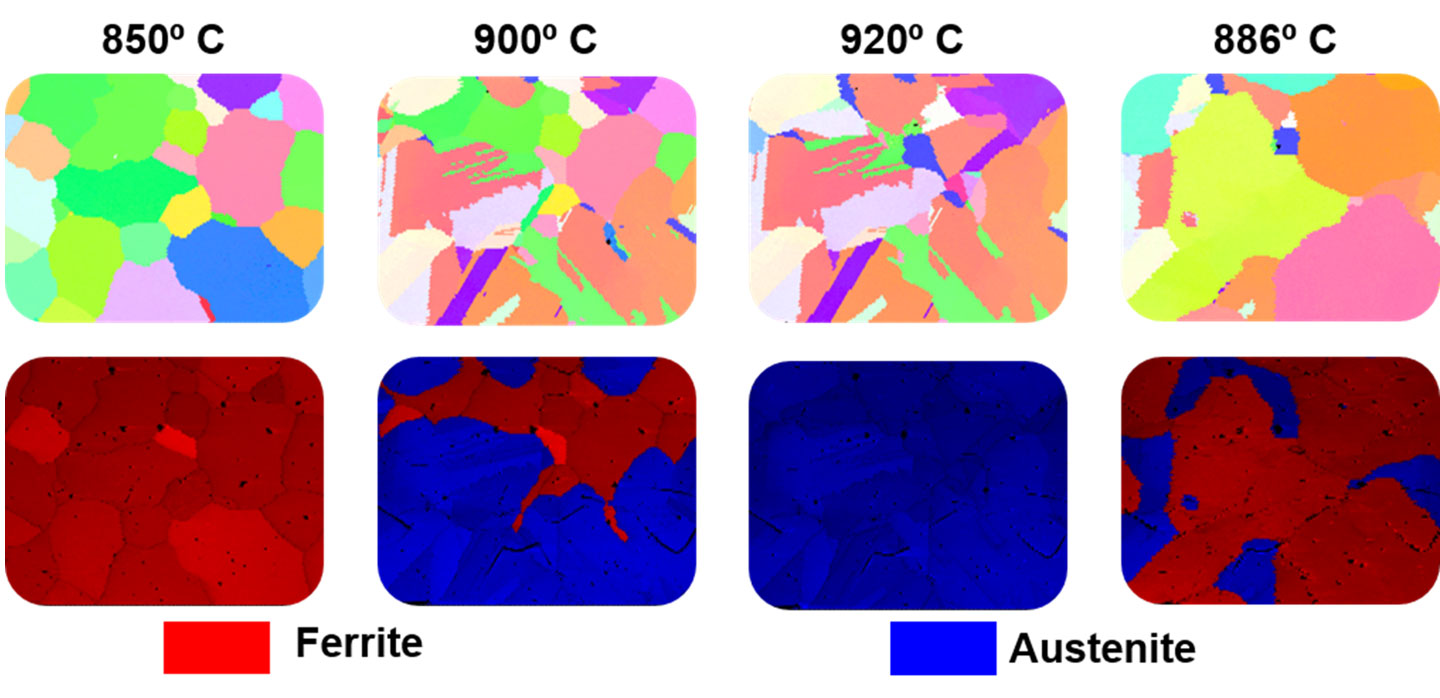

Figure 2. Orientation and phase maps showing the transitions between the BCC ferrite phase and the FCC austenite phase during in-situ heating.
- Highlight regions of interest and define partitions to easily identify and separate microstructural changes within your data

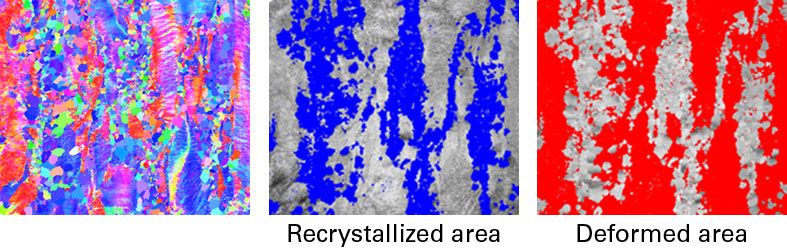

Figure 3. In this partially recrystallized steel sample, the deformed and recrystallized areas can be identified and analyzed individually to better understand recrystallization behavior.
All the tools you need to understand your samples
- Clearly see deformed microstructures at <0.01° resolution to improve orientation precision and reduce noise in misorientation-based maps
- Enable every EDAX system to acquire equivalent or better orientation results 100x faster than HR-EBSD
Figure 4. OIM Matrix improves orientation precision and removes noise in the KAM map from an additively manufactured 316L alloy.
- Leverage interactive maps and plots to interrogate, link, visualize, and measure your data to find key contributors or outliers in your microstructures
- Accurately measure and quantify directional misorientations within distinct regions of interest
- Eliminate ambiguity and error in multiphase samples by using ChI-Scan to analyze EDS and EBSD data simultaneously

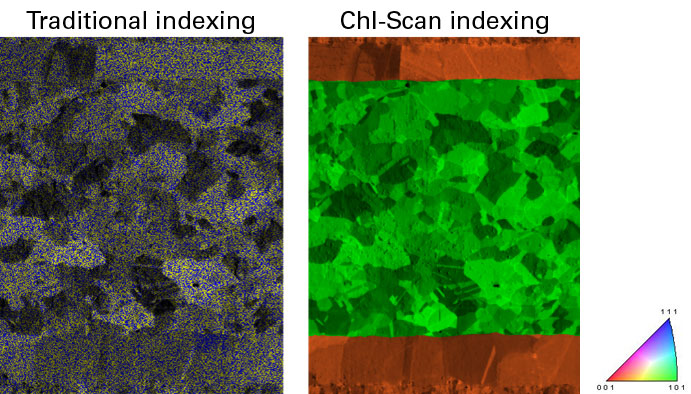

Figure 5. Phase maps showing how ChI-Scan can use combined EDS and EBSD information to eliminate the ambiguities between similar crystallographic structures and show clear phase maps. Phase map before (left) and after (right) ChI-Scan analysis. The green phase is Kovar (FeNiCo) and the orange phase is copper, both with FCC crystal structures.
Unique solutions to your problems
- Combine spherical indexing with NPAR to improve EBSD pattern indexing; turning previously unusable patterns into measurable results
- Utilize the biggest toolbox for analyzing difficult samples through unique solutions like NPAR, PRIAS, and spherical indexing
- Find the subtle differences between similar crystal structures using dynamic diffraction-based pattern simulations
- See more of your sample with PRIAS imaging that provides orientation, atomic number, and topographic contrasts automatically without additional hardware

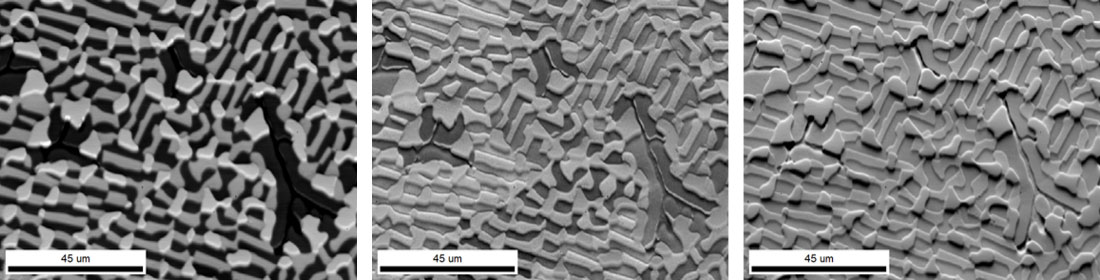

Figure 6. PRIAS maps showing phase, orientation, and topographic contrasts that are not typically observed with standard SEM detectors with EBSD sample geometries.
